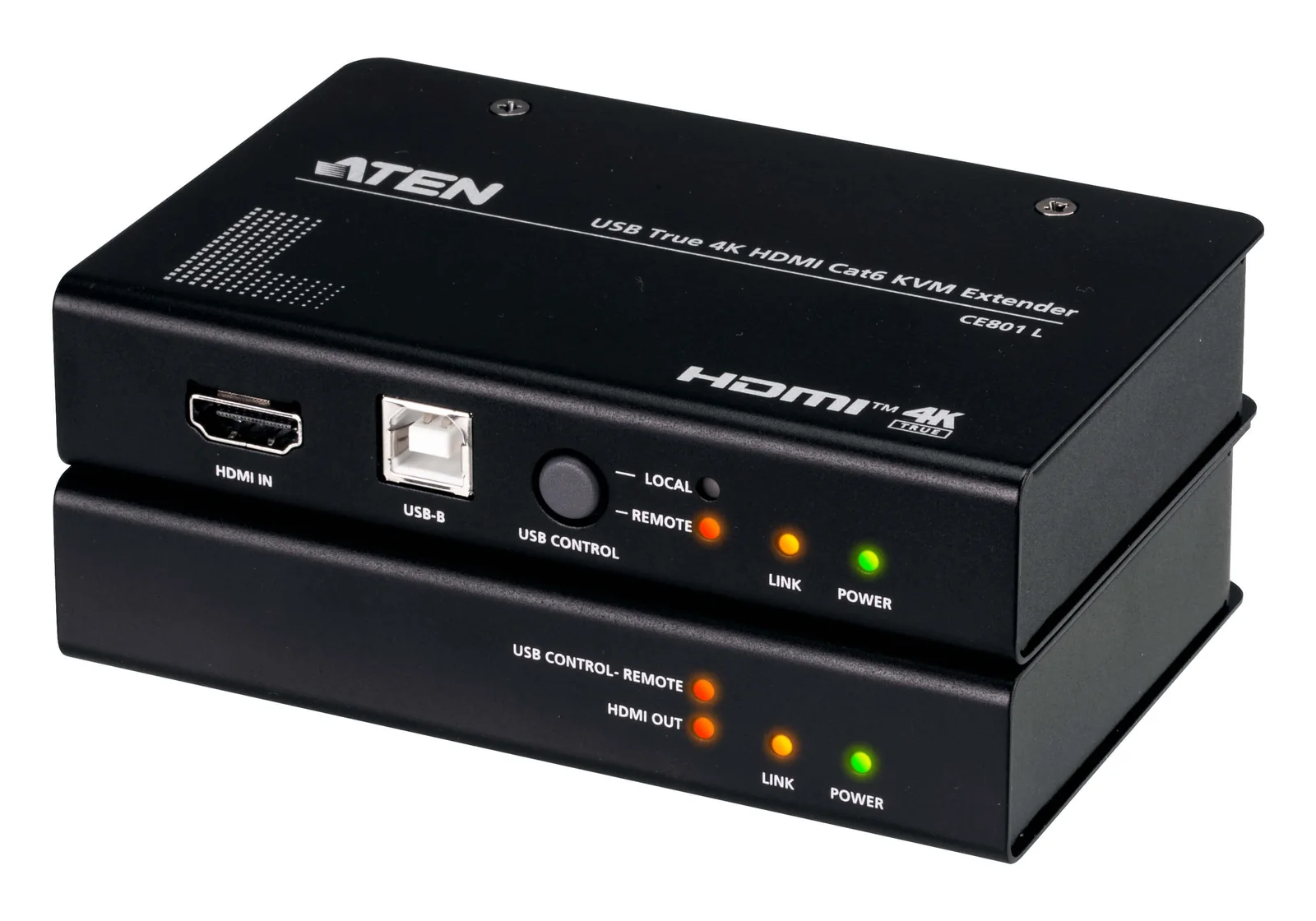

Name: ATEN ATEN-CE801 USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m)
Brand: ATEN
SKU: ATEN-CE801
Price: 25974.90 TRY
Availability: InStock

ATEN-CE801 Uzun Tanım

Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable

Long reach mode – 1080p extension up to 100 m

Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance

Dual console USB keyboard / mouse operation - control privilege
between the remote and local units switchable via USB control mode
pushbutton

Supports HDR 10 for enhanced video quality

Supports wide screen format

Supports digital audio formats such as 7.1ch Dolby and DTS audio

Plug-and-play with no software or driver required

Built-in 8KV/15KV ESD protection

Rack-mountable

DC Jack with screw-lock ensures stable and secure connection

Function

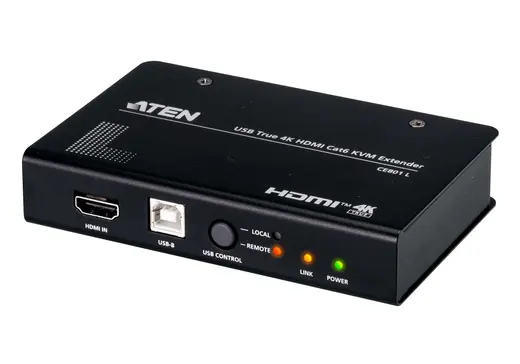

CE801L

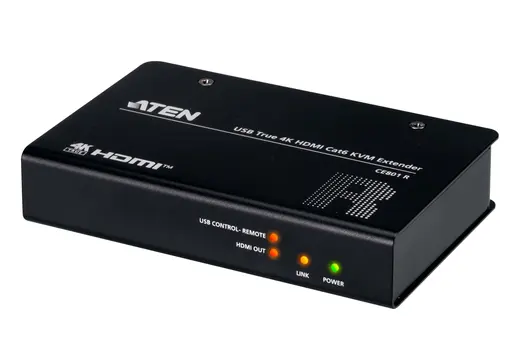

CE801R

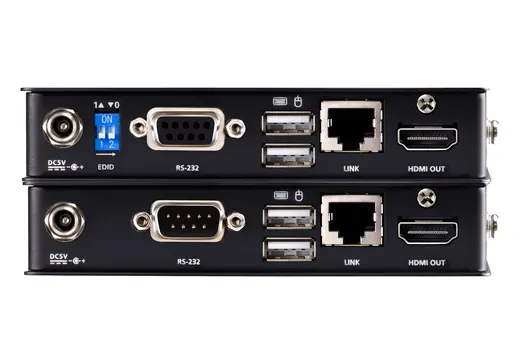

Connectors

Console Ports

1 x HDMI Female (Black)

2 x USB Type A Female (White)*

* For Keyboard & Mouse only

1 x HDMI Female (Black)

2 x USB Type A Female (White)*

* For Keyboard & Mouse only

KVM Ports

1 x HDMI (Female, Black)

1 x USB Type B (Female, White)

N/A

RS-232

1 x DB-9 Female (Black)

1 x DB-9 Male (Black)

Power

1 x DC Jack with locking

Unit To Unit

1 x RJ-45 Female (Black)

Video

Compliance

HDMI (4K/60Hz); 4K HDR

HDCP2.3 Compatible

HDMI (4K/60Hz); 4K HDR

HDCP2.3 Compatible

Max. Resolution

3840 x 2160 @ 60Hz (4:4:4)

Max. Resolutions / Distance

4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6 cable)

1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )

4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable)

1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled )

LEDs

Power

1 (Green)

Link

1 (Orange)

Video

N/A

1 (Orange)

Console Status

2 (Orange)

1 (Orange)

Switches

DIP

1 x 2 pin

N/A

Pushbuttons

Operating Mode Selection

1 x Pushbutton

N/A

Power Consumption

DC5V:2.59W:28BTU/h

Note:

? The measurement in Watts indicates the typical power consumption of the device with no external loading.

? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

DC5V:1.88W:13BTU/h

Note:

? The measurement in Watts indicates the typical power consumption of the device with no external loading.

? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature

0-40°C

Storage Temperature

-20-60°C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

0.32 kg ( 0.7 lb )

0.31 kg ( 0.68 lb )

Dimensions (L x W x H)

12.80 x 8.21 x 2.50 cm

(5.04 x 3.23 x 0.98 in.)

12.80 x 8.15 x 2.50 cm

(5.04 x 3.21 x 0.98 in.)

Note

For some of rack mount products, please note that the standard
physical dimensions of WxDxH are expressed using a LxWxH format.

Remote HDMI out

640 x 480 @ 60/67/72/75 Hz

1600 x 1200 @ 60 Hz

640 x 480 60 Hz (4:3)

1680 x 1050 @ 60 Hz

480p 60 Hz (4:3)/(16:9)

1920 x 1080 @ 60 Hz

576p 50 Hz (4:3)/(16:9)

720p 50/60 Hz

800 x 600 @ 56/60/72/75 Hz

1080i 50/60 Hz

1024 x 768 @ 60/70/75 Hz

1080p 24/25/30/50/60 Hz

1280 x 800 @ 60 Hz

1080p 60 Hz

1280 x 1024 @ 60/75 Hz

3840 x 2160p 24/25/30 Hz

1400 x 1050 @ 60 Hz

3840 x 2160p 50/60 Hz 4:2:0

1440 x 900 @ 60 Hz

Teknik Özellikler

Supports resolutions up to 3840 x 2160 @ 60 Hz (4: 4:4) with HDCP 2.2 / 2.3 compliance
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
640 x 480 60 Hz (4:3): 1680 x 1050 @ 60 Hz
480p 60 Hz (4:3)/(16:9): 1920 x 1080 @ 60 Hz
576p 50 Hz (4:3)/(16:9): 720p 50/60 Hz
800 x 600 @ 56/60/72/75 Hz: 1080i 50/60 Hz
1024 x 768 @ 60/70/75 Hz: 1080p 24/25/30/50/60 Hz
1280 x 800 @ 60 Hz: 1080p 60 Hz
1280 x 1024 @ 60/75 Hz: 3840 x 2160p 24/25/30 Hz
1400 x 1050 @ 60 Hz: 3840 x 2160p 50/60 Hz 4:2:0
