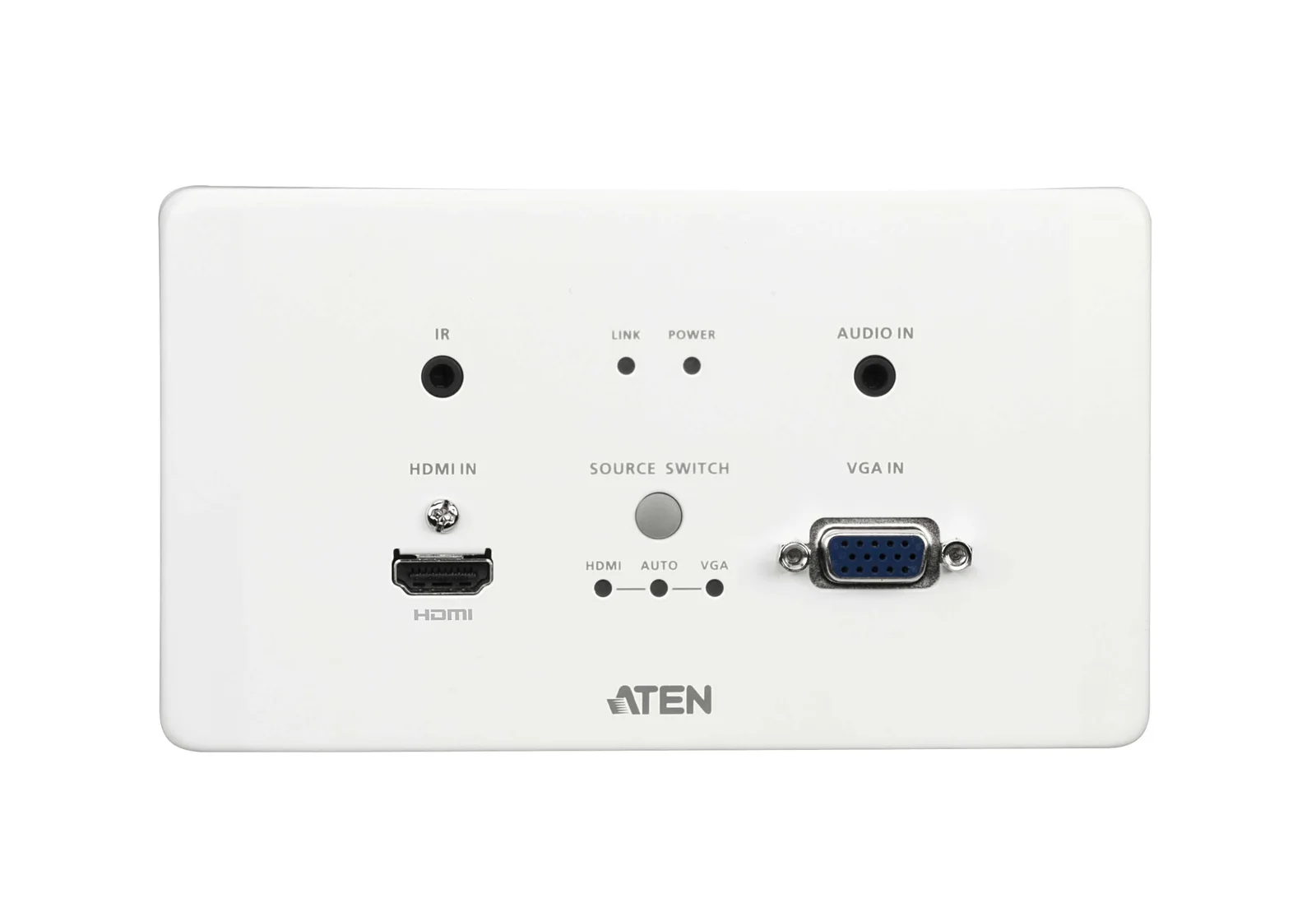

ATEN ATEN-VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A) (PoH PD)

ATEN-VE2812AEUT Uzun Tanım

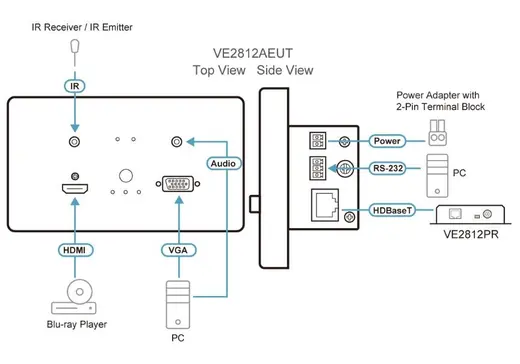

• Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable

Superior video quality:

• HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable

• VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable

HDMI (3D, Deep color, 4K); HDCP 2.2 compliant

Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p

Designed to mount in a two-gang junction box, compatible with EU & MK type

Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives
power supply from the HDBaseT output port on the connected device

Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source

Functions as a switch or a converter

• A Switch: Connects two sources (HDMI or VGA)

• A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)

Supports RS-232 channel transmission or command mode for source switch control

Compatible Receivers – VE2812R, VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R, VE2812PR or future ATEN HDBaseT Receivers

Plug-and-play

LED indication of sources and device status

Built- in 8KV / 15 KV ESD protection

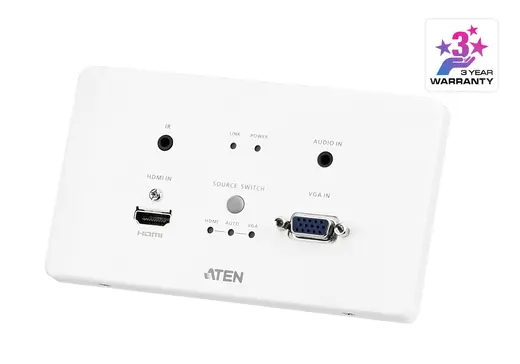

Video Input

Interfaces

1 x HDMI Type A Female (Black)

1 x HDB-15 (VGA) Female (Blue)

Impedance

HDMI: 100 ?

HDB-15 (VGA): 75 ?

Max. Distance

HDMI: 3 m

HDB-15(VGA): 10m

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Color, 4K)

HDCP2.2 Compatible

Consumer Electronics Control (CEC)

Max. Resolutions / Distance

HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)

VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)

*4K supported:

4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

1 x HDMI Type A Female (Black)

1 x Mini Stereo Jack Female (Green)

Control

RS-232

Connector: 1 x Terminal Block, 3 pole (Green)

Baud Rate: 19200, Data Bits:8,

Stop Bits:1, no parity and flow control

IR

1 x Mini Stereo Jack Female (Black)

Switches

Video Input Port Selection

1 x Push Button - HDMI, VGA and AUTO

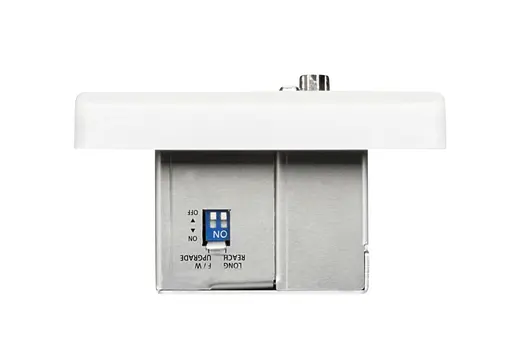

Long Reach Mode Switch

1 x Slide Switch - ON/OFF

Firmware Upgrade

1 x Slide Switch - ON/OFF

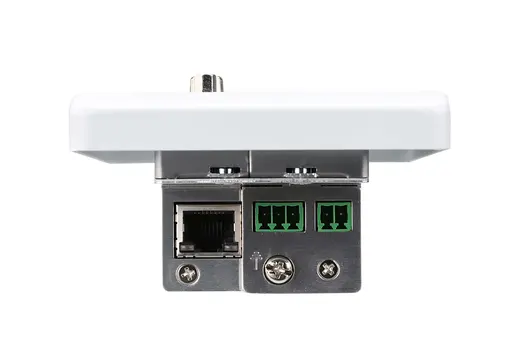

Connectors

Unit To Unit

1 x RJ-45 Female

Power

1 x Terminal Block, 2 pole (Green) or

1 x RJ-45 Female (POH)

Power Consumption

DC5V:3.14W:15BTU/h

POH:3.93W:18BTU/h

Note:

? The measurement in Watts indicates the typical power consumption of the device with no external loading.

? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.30 kg ( 0.66 lb )

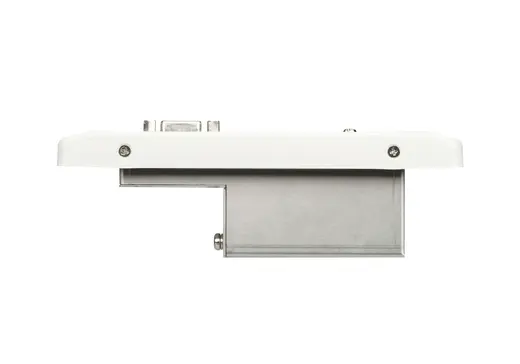

Dimensions (L x W x H)

5.00 x 10.80 x 5.17 cm

(1.97 x 4.25 x 2.04 in.)

Faceplate Dimensions (L x W x H)

8.60 x 15.10 x 1.35 cm

(3.39 x 5.94 x 0.53 in.)

Package Contents

1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH

1x 3 Pin RS-232 Terminal Block

1x 2 Pin Power Terminal Block

1x Mounting Kit

1x Power Adapter

1x User Instructions
