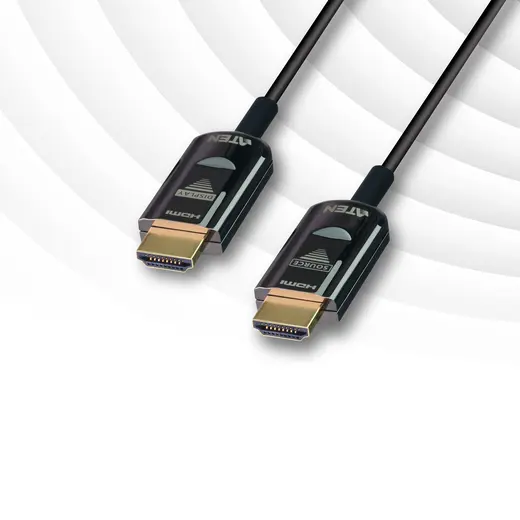

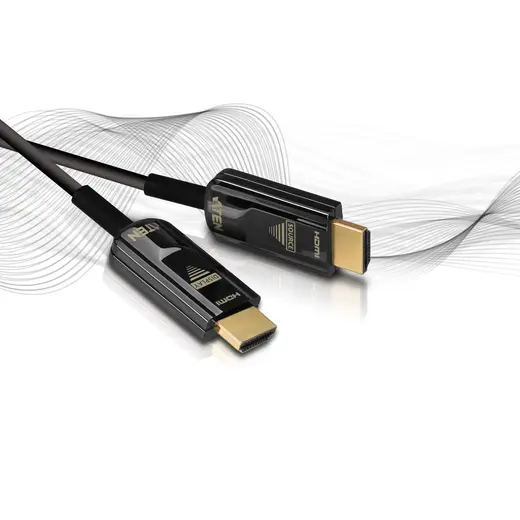

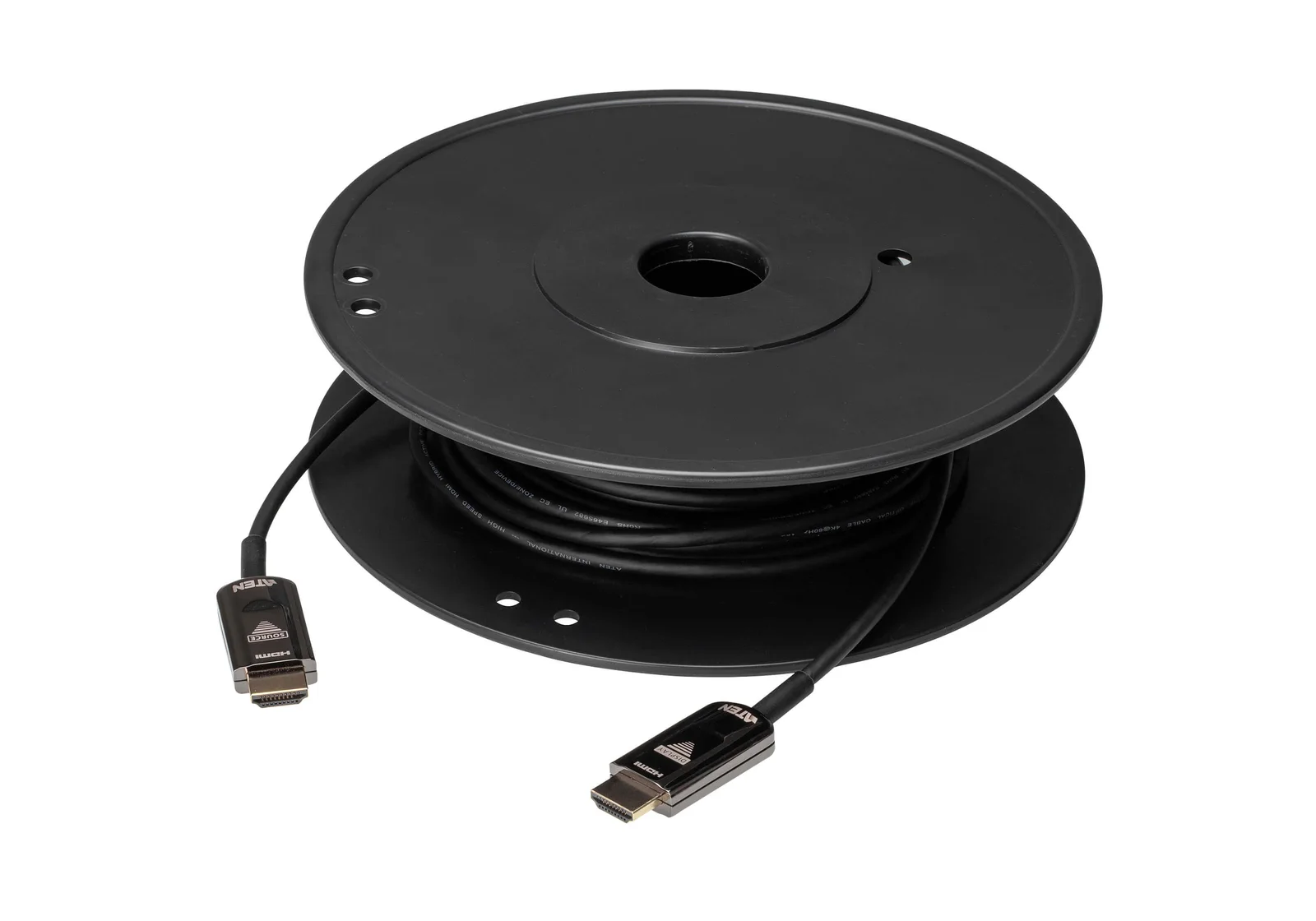

ATEN ATEN-VE781020 20M True 4K HDMI Active Optical Cable (True 4K@10m)

ATEN-VE781020 Uzun Tanım

• Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)

• HDMI (3D, Deep Color, True 4K, HDR, ARC); HDCP 2.2 compliant
• Extends True 4K signals up to 20m
• Reduced EMI and RFI for lower noise interference
• High data transfer rate of 18 Gbps

• Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
• Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
• Plug-and-play

Cable Length 20M / 65.6ft

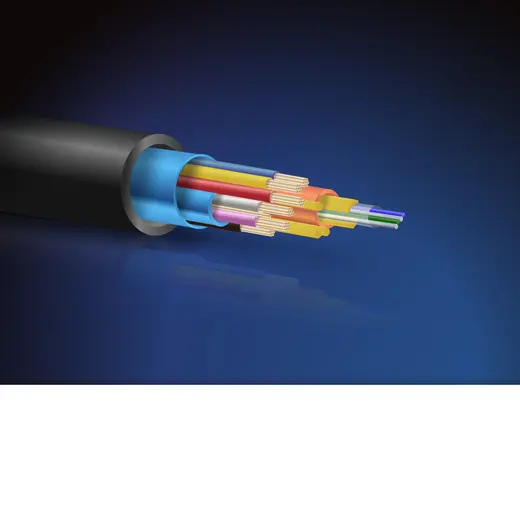

Cable Type Hybrid type with optical fiber (OM3) and copper wire
Video Input
Interfaces 1 x HDMI 19-pin Type-A Male
Video Output
Interfaces 1 x HDMI 19-pin Type-A Male
Video
Max. Data Rate 18 Gbps (6 Gbps per Channel)
Max. Pixel Clock 600 MHz (Max.)
Max. Resolutions / Distance Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 20M
*Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
*Color Depth: 30 / 36 / 48 bit
Compliance HDMI (3D, Deep Color, 4K, HDR, ARC)
HDCP 2.2
Communication
Signals TMDS / HDCP 2.2 / EDID / CEC
Audio
Input PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Conductor

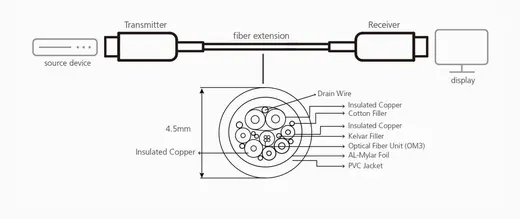

Construction 7 x Tinned Copper wire strand
4 x OM3 Optical Fiber (50/125um)
Notification Bend Radius: 20mm (Min.)
Compression Load Resistance: Max. 50kg (500N)
Cable Filler: Kevlar
Cable
Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL
CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE
* NO external power required
Certifications
Certifications Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1
EMC Class-A / Class-B
Power Consumption DC5.0V:0.25W:0.05ABTU
Jacketed
Material PVC (85P)
Color: Black
Environmental
Operating Temperature 0°C to 50°C (32? to 122?)
Storage Temperature -20°C to 70°C (-4? to 158?)
Humidity 0 - 85% RH, Non-Condensing
Physical Properties
Housing Connector Case: Zinc Alloy
Weight 0.65 kg ( 1.43 lb )
Cable Outer Dimension 4.5mm (± 0.2mm)

Package Contents

• 1x VE781020 20M True 4K HDMI Active Optical Cable
• 1x Installation Notice

Teknik Özellikler

• Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4: 4:4)
• Cable Length: 20M / 65.6ft
• Cable Type: Hybrid type with optical fiber (OM3) and copper wire
• Interfaces: 1 x HDMI 19-pin Type-A Male
• Max. Data Rate: 18 Gbps (6 Gbps per Channel)
• Max. Pixel Clock: 600 MHz (Max.)
• Max. Resolutions / Distance: Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 20M *Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 *Color Depth: 30 / 36 / 48 bit
• Compliance: HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2
• Signals: TMDS / HDCP 2.2 / EDID / CEC
• Input: PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
• Output: PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
• Construction: 7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um)
• Notification: Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE * NO external power required
• Certifications: Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B
• Power Consumption: DC5.0V:0.25W:0.05ABTU
• Material: PVC (85P) Color: Black
• Operating Temperature: 0°C to 50°C (32? to 122?)
• Storage Temperature: -20°C to 70°C (-4? to 158?)
• Humidity: 0 - 85% RH, Non-Condensing
• Housing: Connector Case: Zinc Alloy
• Weight: 0.65 kg ( 1.43 lb )
• Cable Outer Dimension: 4.5mm (± 0.2mm)
