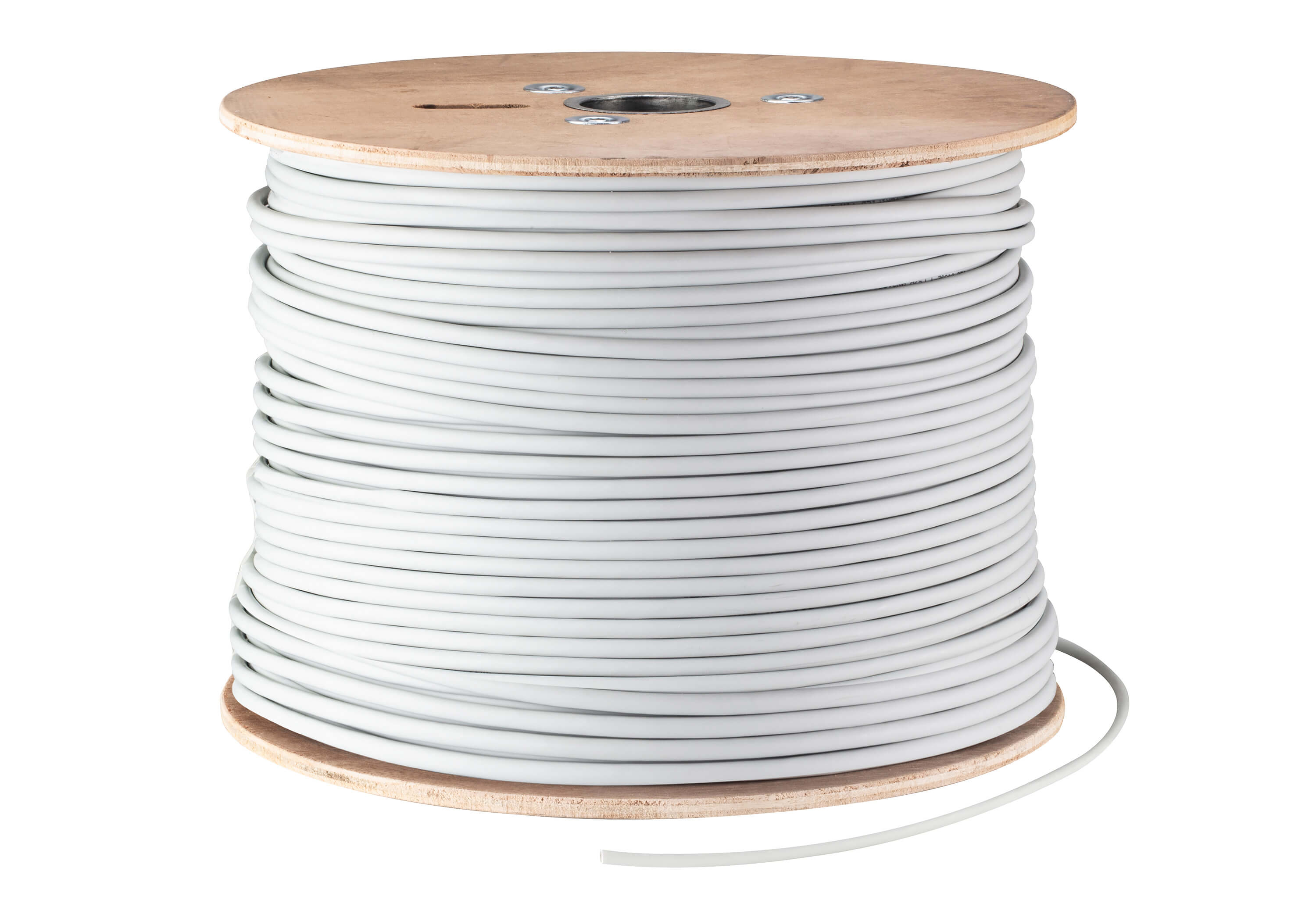

Name: Aten ATEN-2L-29330 300 m HDBaseT 3.0 U/FTP Cat 6A Cable
Price: 168.66 TRY
Availability: InStock

Aten ATEN-2L-29330 300 m HDBaseT 3.0 U/FTP Cat 6A Cable

0 yorum yapılmış. - Yorum Yap

168,66TL

Vergiler Hariç: 140,55TL

Adet

Sepete Ekle

Satın Al Soru Sor

Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s bandwidth, including True 4K video, audio, Ethernet, power, and control
The length of a reel of 2L-29330 is 300 m – tailored to specific lengths up to 100 m based on practical usage
Resistant to electromagnetic interference (EMI) and radio frequency interference (RFI) brought by walkie-talkies or any other radio devices to prevent AV signal disturbance
Conductor material: 23 AWG solid bare copper
Tested transmission up to 500 MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D, and IEC 60332-1 standards
Outer shielded material: AI Mylar tape and braid
Low Smoke Zero Halogen (LSZH) copper cable – eco-friendly material design for better safety
Compatible with ATEN’s HDBaseT extenders, splitters, and matrix switches

Cable Type	Cat 6A U/FTP
Cable Length	300m / 990ft
Conductor
Size	23AWG
Construction	Individual shielded pair
Material	Solid plain annealed bare copper wire
Number of Pairs	4 twisted pairs, 2 single conductors paired
Insulation
Material	Foamed PE , 1.46 +/- 0.1mm
Color codes	Twisted pair color code: Light Blue / Blue Light Orange / Orange Light Green / Green Light Brown / Brown
Binder
Material	Polyester
Shield
Material	A layer of aluminum-foil laminated tape
Drain Wire
Construction	26AWG
Jacketed
Material	LSZH (Low Smoke Zero Halogen)
Diameter	7.2+/-0.5 mm
Color	Gray
Electrical
DC Resistance	9.38 Ω (max.) / 100m at 20 °C
Propagation Delay	535.6ns (max.) / 100m at 500Mhz
Propagation Delay Skew	45ns Max./100m
Insertion Loss	45.3 dB (max.) / 100m at 500Mhz
Impedance	100+/-15 Ω
Environmental
Temperature (Operating / Storage)	-20°C to 60°C
Physical Properties
Weight	17.00 kg ( 37.44 lb )
Standard Support	ANSI/TIA-568.2-D HDBaseT 3.0 Premium cable
