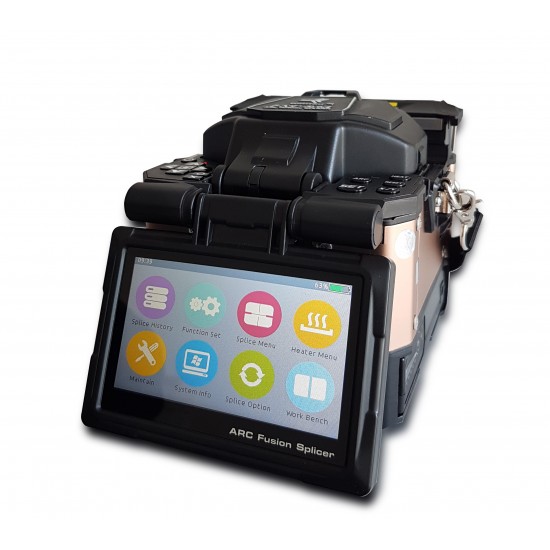

Tumtec TT-FST-83A Tumtec Fiber Optic Fusion Splicer (FST-83A)
- Durum: Stokta yok
138.960,00TL
Vergiler Hariç: 115.800,00TL
• Core to Core
• 3S Turn On Time
• 6S Splicing Time
• 5” Color LCD Touch Screen
• 5200mAh Battery Capacity
• 500X Magnification
| Model | FST-83A |
| Dimension | 140W x 165L x 145H mm (including rubber bumper) 130W x 165L x 135H mm (excluding rubber bumper) |
| Weight | 2.0KG (including rubber bumper) 1.7KG (excluding rubber bumper) 0.38KG (battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25-3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm) |
| Cleaved Length | Diameter: 0.125-1 mm / Cleave Length: 8-16 mm |
| Cladding Diameter | 80-150 pm |
| Splicing Mode | Multiple splicing modes |
| Typical Splice Loss | 0.04db |
| Return Loss | >> 60 dB |
| Lighting | 1 Powerful White LED and illuminated Keypads |
| Splicing Time | 6-8 seconds |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20-60 mm |
| Heating Mode | Multi heating modes |
| Heating Time | typical heating time: 30 sec |
| Results Storage | The last 5000 results |
| Tension Test | 1.5-2.0N |
| Operating Condition | Operating Altitude: 0-5000m above sea level, 0.95% relative humidity, - 10-50°C, Max Wind 15m/s |
| Storage Condition | 0-95% relative humidity, -40-80°C |
| Display | 90° bi-directional view, 5.0" 800*480 Color High Resolution Display with touch screen |
| Fiber View & Magnification | X, Y, XY, X/Y : 500X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| No of Splice / Heating with Battery | 5200mAh Battery Capacity, Typical above 280 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5000 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / Phone Jack |
